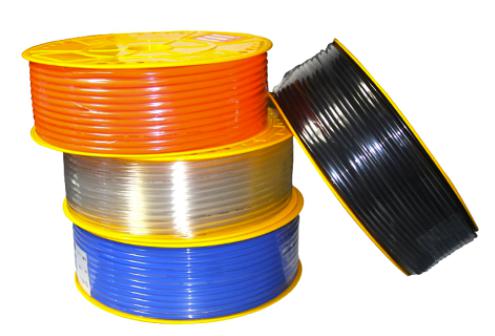

PU0850 BL Purchase code
PU | 8*5 | 100 | BK |
Polyurethane tube | Tube Dia | Length | Color |
100m | Transparent: TR | ||
200m | Black: BK | ||
Blue: BL | |||
Orange: OR | |||
Transparent Blue: TRBL | |||
Yellow: YL | |||
Red: RD |
Features
The ester-based PU tube, featuring excellent pressure resistance, weather resistance, corrosion resistance and flexibility, used for the piping of air concerned system.
Application: industrial automation, pneumatic tools,tube for water and fluids, vacuum tubes.
Code | O.D | I.D | Operating Pressure | Burst Pressure | Bend Radius | Length |
3*2 | Φ3 | Φ2 | 7.5 | 30 | 6 | 200 |
4*2.5 | Φ4 | Φ2.5 | 8 | 35 | 10 | 200 |
6*4 | Φ6 | Φ4 | 7.5 | 30 | 15 | 200 |
8*5 | Φ8 | Φ5 | 8 | 35 | 20 | 100 |
8*5.5 | Φ8 | Φ5.5 | 6 | 24 | 20 | 100 |
10*6.5 | Φ10 | Φ6.5 | 8 | 32 | 25 | 100 |
12*8 | Φ12 | Φ8 | 7.5 | 30 | 35 | 100 |
14*10 | Φ14 | Φ10 | 6 | 24 | 60 | 100 |
16*12 | Φ16 | Φ12 | 7.5 | 30 | 80 | 100 |
Technical Data
Applicable Fluid Type | Air, Water | |||||
Working Temperature Range | .-20--60C | |||||
Connect with | Push to connect fittings,Barb-type and compression fittings |
How do I choose the correct pneumatic plastic tube for my application?
A. Choosing the correct pneumatic plastic tube for your application depends on several factors, including the required diameter, the required length, and the required pressure rating. It is important to consider the specific needs of your application and choose a tube that meets your requirements.
What are the different types of pneumatic plastic tubes?
A. There are several different types of pneumatic plastic tubes, each designed for different applications. Some common types include:
Rigid plastic tubes, which are made from a single piece of plastic and are typically used in applications that require a high degree of stiffness and strength.
Flexible plastic tubes, which are made from multiple layers of plastic and are typically used in applications that require a high degree of flexibility and compliance.
Coil tubing, which is made from a continuous length of plastic and is typically used in applications that require a high degree of compression and tension.
How do I maintain my pneumatic plastic tube?
A. To maintain the performance of your pneumatic plastic tube, it is important to clean it regularly. Use a clean, soft brush to remove any debris or accumulated dust. Also, check the fit of the tube on the air line to ensure that it is secure and does not move during use.
What are the potential benefits of using a pneumatic plastic tube?
A. The use of a pneumatic plastic tube can provide several potential benefits, including:
Improved stiffness and strength
Improved flexibility and compliance
Increased ease of use
Greater versatility in applications
How can I ensure the safety of my pneumatic plastic tube?
A. To ensure the safety of your pneumatic plastic tube, it is important to follow several best practices. These include:
Using the correct size and type of tube for the application.
Adjusting the fit of the tube to ensure that it is secure and does not move during use.
Storing the tube in a dry, clean location.
Properly disposing of any debris or accumulated dust.
